Learn in this video with instruction article how you can easily attach a Van Raam Slim battery to a special bike and also remove it again. Also read some handy tips on how to see if the battery fits well on your bike.
A Slim battery is found on the rear wheel of electric bikes. Watch the video below to see how to attach and remove the battery.
Tip: This video is spoken, turn on subtitles for accompanying text and explanations.
In order to attach the Slim battery to a Van Raam bicycle, please follow the steps below:
How to attach a Van Raam Slim battery?
In order to attach the Slim battery to a Van Raam bicycle, please follow the steps below:
Slide the quick binders to the side so that there is more space to place the battery.
Take the key of the battery and turn it halfway.
This will open the lever by which you can hold the battery.
Place the battery behind the lower cross bar of the device, making sure that the bottom side is well seated.
Then you will be able to click the upper side into place. Release the lever and turn the key again.
By turning the key you can also check if the battery is well placed, if you cannot turn the key the battery is not well placed in the device.
If the battery is well placed, you can also check that the switch on the controller is facing the right way. The switch on the side where the battery is located should be on.
Â

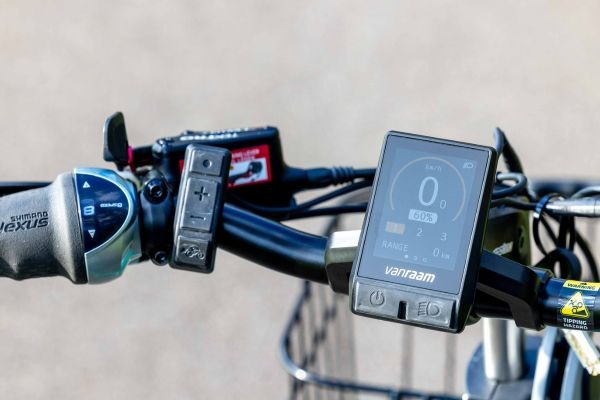

Another tip is to turn on the display after placing the battery. If the battery is in the right place, it will switch on and the automatic lighting will also switch on.
After you have switched off the bike's display, you can remove the battery from the bike.Follow the steps below to do this:
Again, slide the quick binders to the side so that there is more room to remove the battery.
​Take the key of the battery and turn it halfway.
Now lift the lever up.
Now hold the battery firmly with both hands and remove it from the holder towards the front.
Are you curious about how a Van Raam battery works and how best to charge it? Then watch our video in the article "How does a Van Raam battery work and how to charge it?".
Van Raam's electric bicycles are equipped with lithium-ion (Li-Ion) batteries. In the article "Frequently asked questions about Van Raam batteries " Rick de Jonge, electrical engineer at Van Raam, answers some frequently asked questions about these batteries.
Would you like to know more about the pedal support system developed by Van Raam? Then continue reading on the page: "Pedal support". Read more about the Silent system and the Van Raam app here.
In our showroom in Varsseveld you can take a test ride and also learn how to place and remove the battery on your bike. A technical adviser will help you choose the bike that suits you best. On our test track it is possible to do test rides on different surfaces and practice real traffic situations. Afterwards, you will receive a quotation that you can take to a Van Raam dealer without obligation to order your special bike this way.
